CS920S
CS920-S

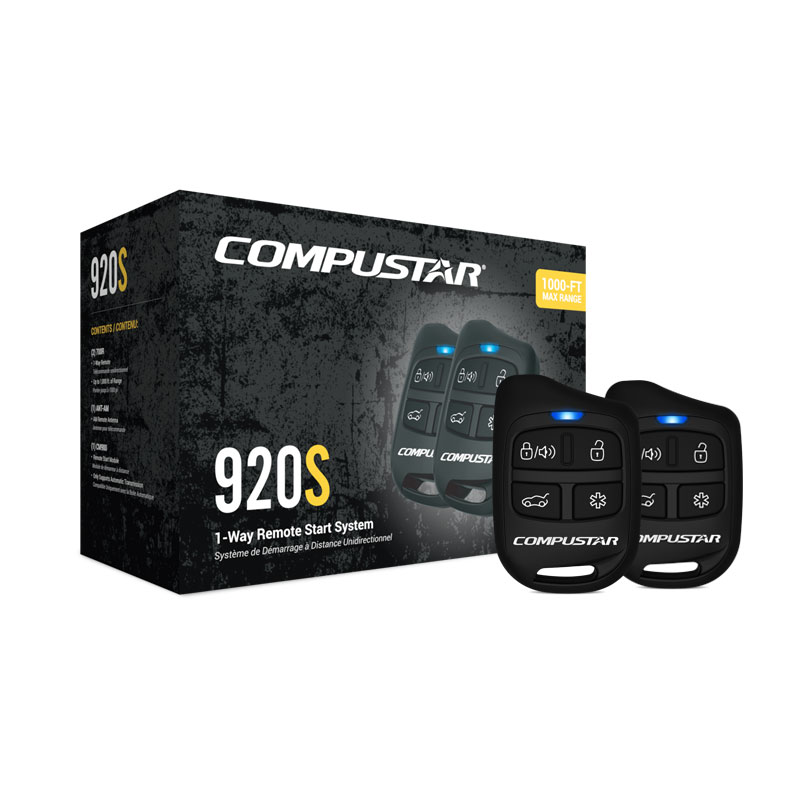

All-in-One Remote Start Bundle

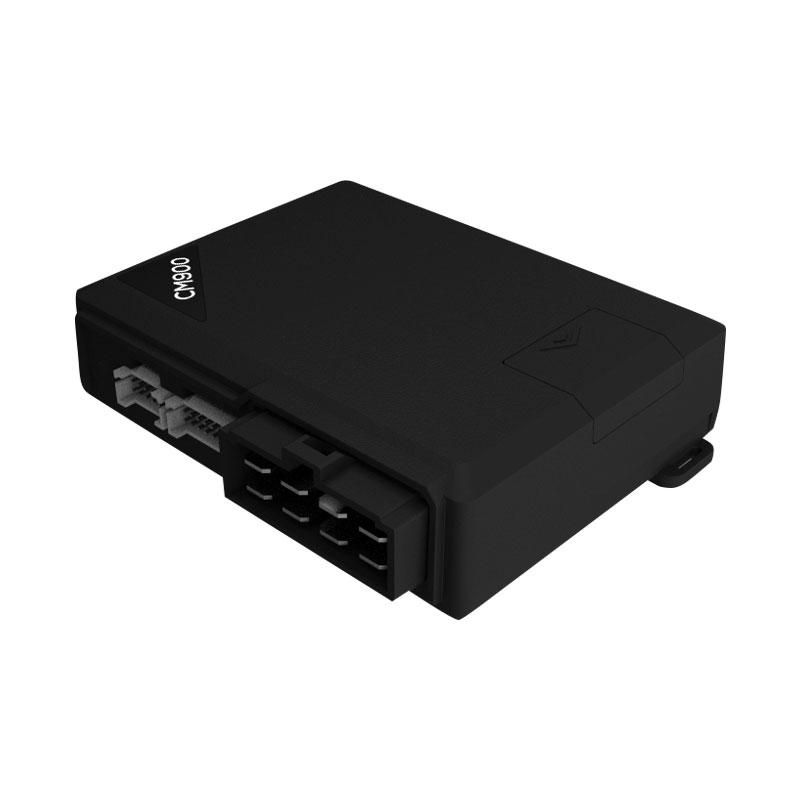

1000-ft max range remote start bundle with two 1-way remotes. Includes CM900 control module.
ALARM FEATURES:
- TWO, 5 button High Frequency (433.92 MHz Mini-size Remote Transmitters w/S.A.W. Resonator & Blue LED
- New C3 compatible
- 66 Bit Random Code Hopping
- Dedicated Buttons on the Icons on the Remote
- Code Learning / Anti-scan Receiver
- Shift Button for 2nd Car Operation
- New RX300A Super Heterodyne Extended Range Window Mount Antenna Receiver with S.A.W. Resonator and 4-pin connector
- Back-up Memory System
- High Quality Molex-type Connectors
- 2-Push Safety Start on the Start Button
- Window Comfort Feature
- Dedicated Remote Panic and Car Locator
- Passive Arming By-pass from Remote
- Parking Light Flash (Dual Polarity Relay)
- 2nd & 3rd Channel Auxiliary Outputs
- Plug-in Dual Stage Shock Sensor w/bypass
- Plug-in Push-type Valet/Override Switch
- Plug-in Super Bright LED
- Starter Disable (500 mA output) with Relay and Socket included
- Dome light Illuminated Entry Output
- 1 Positive, 4 Negative Inputs
- 120 dB Electronic siren w/ Optional Horn Output
- Dual Polarity (+/-) Door Lock Outputs with 500 mA output
- Optional Driver s Priority Two-Step Door Unlock
- Port for Optional 2-way LCD Communication with the XT42LCD/ANT Kit
- REMOTE START FEATURES:
5 on board relays:
1. Ignition 1
2. Ignition 2
3. Starter
4. Accessory
5. Parking Light
- On-board Serial Port for AP Data Link Data Bus Integration
- New Ultra small unit design utilizing Micro K relays
- New GM starter timing for no start wire vehicles
- New Dual Polarity 6 stage Programmable Door locks with double pulse lock and unlock
- New Dedicated 2nd Ground out, ACC 2 and 2nd Start wires
- 3rd Ignition (-) output
- Remote Start Turbo Timer
- Diesel Fuel Compatible w/ Timer Select
- Hood Pin Switch Safety Input
- Selectable Voltage / RPM / Timer Start
- RPM / Voltage / Hi-Low Level Check
- Sensor control output during start
- Temporary Stop Feature
- Factory Alarm Disarm and Rearm Signal Out
- Programmable Ignition 2 (on/off)
- Programmable 3 or 24 Hour Timer Start
- Selectable run timer (5/10/20/30)
- Ignition Control By-pass during remote start
- Programmable factory keyless door locking before and after start
- Programmable sensor bypass with optional 20-second delay timer
- All features programmable via the remote transmitters.
